| LED Type | COB |
| LED Quantity (leds/m) | 480leds/m |

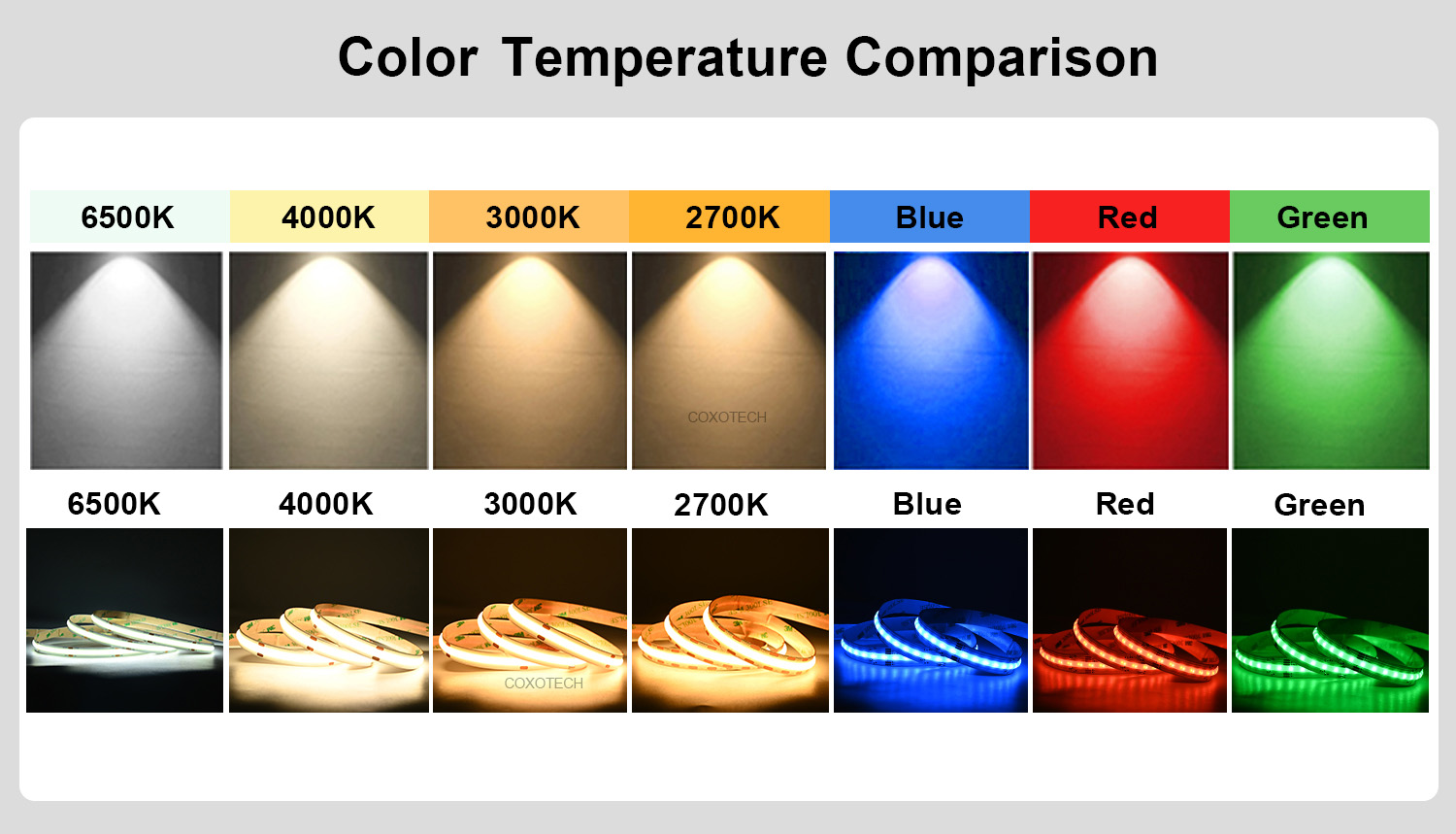

| Typical Color Temperature | 2700K,3000K,4000K,6500K,Blue,Green,Red |
| Work Voltage | 24V/12V |
| Power | 24 w/m |

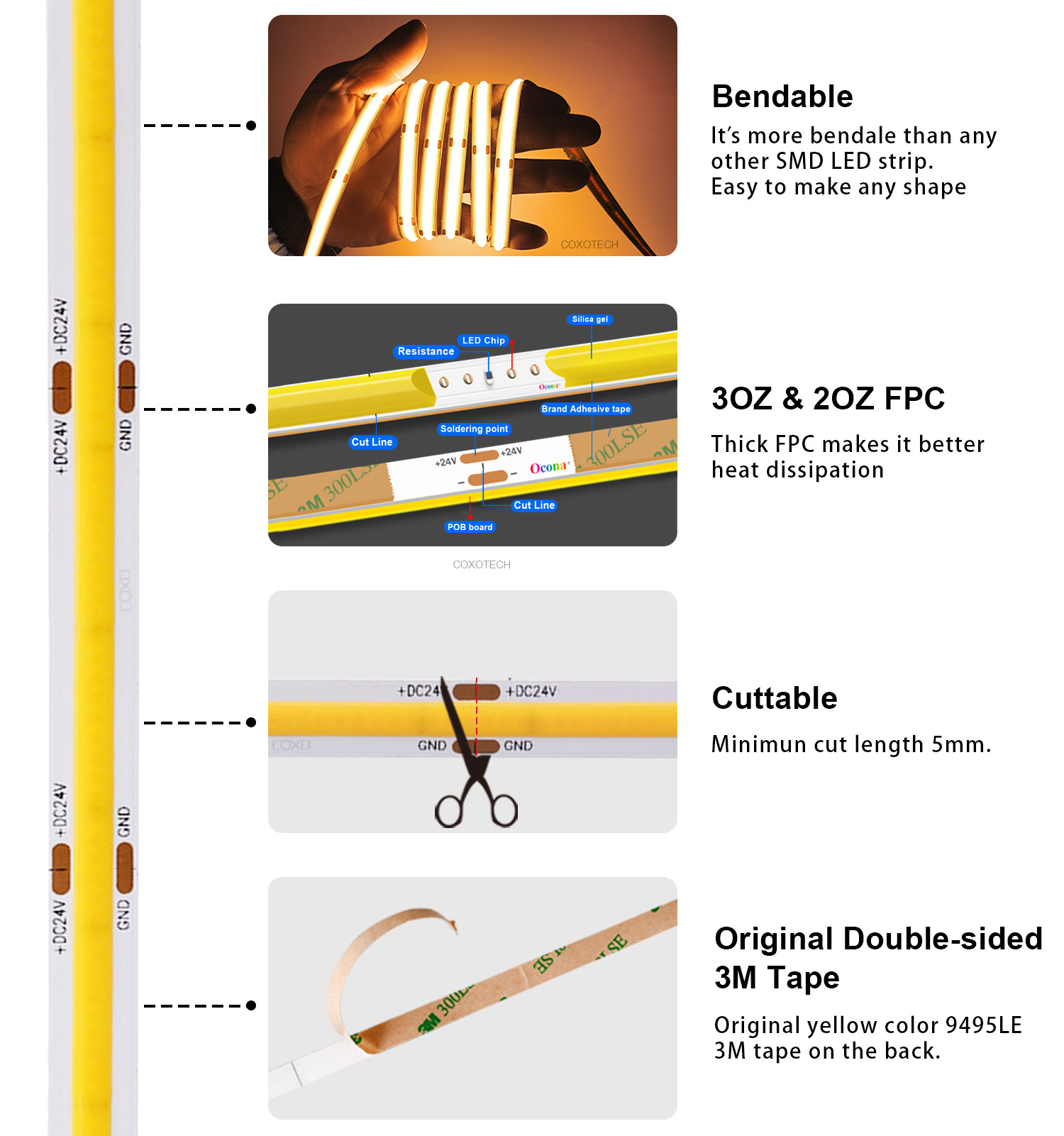

| Cutting Unit | 50mm |
| PCB Width | 10mm |
| IP Rating Opthional | IP20/IP65/IP67/IP67S |
| Adhesive Tape | 3M 9495LE 300MP |

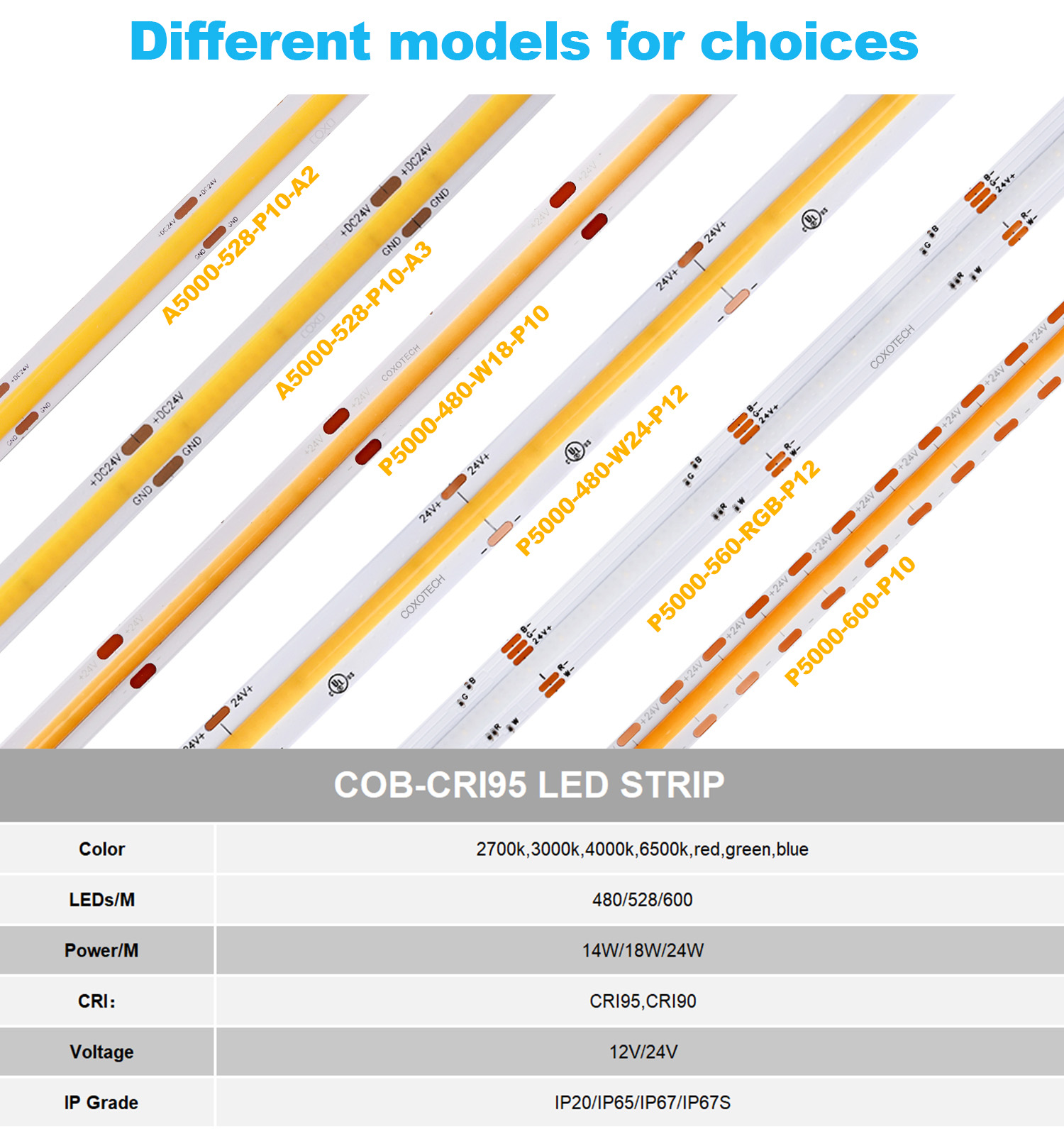

| Model No. | Specification | IP Rating Option | ||||||||
| LED Type | LED Qty (pcs/m) |
Color Temperature | Work Voltage | Power | Lumen （Lm/m） |
Ra | Cutting Unit |
PCB Size | ||
| P5000-480-65K-V24-R95-NWP-W18-P10-A3 | COB | 480 | 6500±300K | 12V DC 24V DC |
18W/M | 2050Lm | Ra>95 | 50mm(24V) | 5000*10mm 3 oz(35/70) |
IP20/IP65/IP67/IP67S |
| P5000-480-40K-V24-R95-NWP-W18-P10-A3 | 4000±200K | 1950Lm | ||||||||
| P5000-480-30K-V24-R95-NWP-W18-P10-A3 | 3000K±100K | 1850Lm | ||||||||
| P5000-480-27K-V24-R95-NWP-W18-P10-A3 | 2700K±100K | 1800Lm | ||||||||
| P5000-480-X-V24-NWP-W18-P10-A3 | Red/Green/Blue | / | / | |||||||
| Package 1: 500m per carton |
|
Inner box: 25rolls 125m
34x20x22 cm / 3kg Outer Box :4 inner boxes 500m 42x35x46cm / 13kg |
