| Model No. | LED TYPE | LED QTY | CCT | Input Voltage |
Power | Cutting Unit | CRI | Luminous Angle | IP Grade | Lumen （Lm/m） |
Size |
| N2505-D120-CCT-V24-R90 | 2835 | 120 Double Lines |
2700-6500K Adjustable |
24V DC | W: 20W WW: 20W Mixed CCT: 20W Max Power:40W |

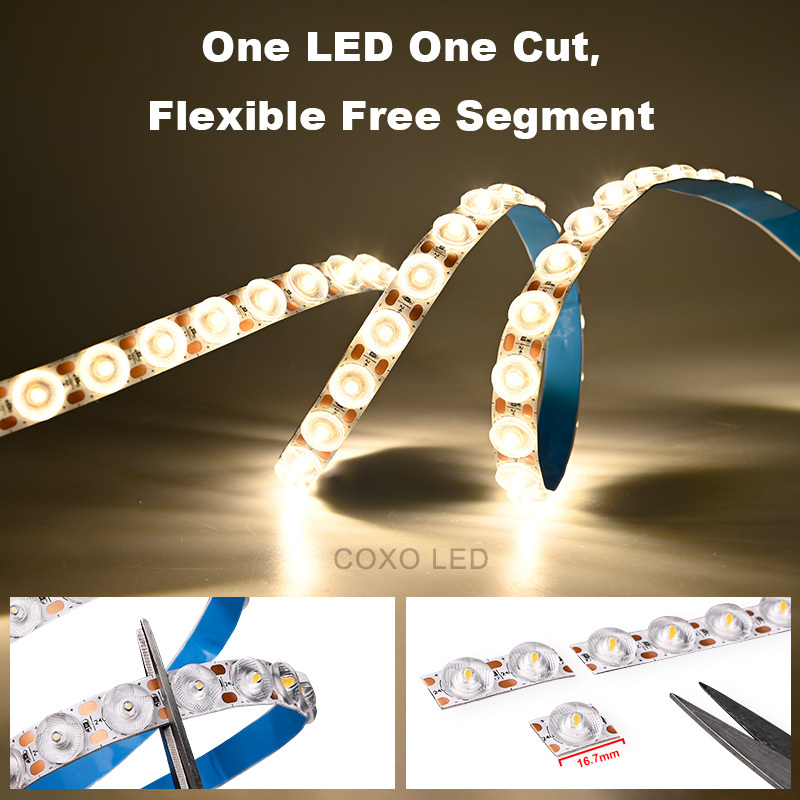

1 LED 16.7mm |

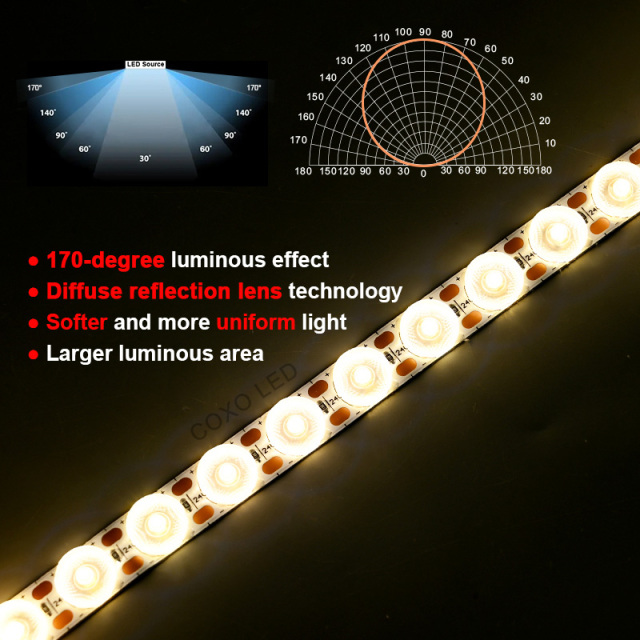

90 | 170° | IP20 | 2250-2400lm Max Lumen:3800Lm |
10m(L)*25mm(W) *5mm(H) |
