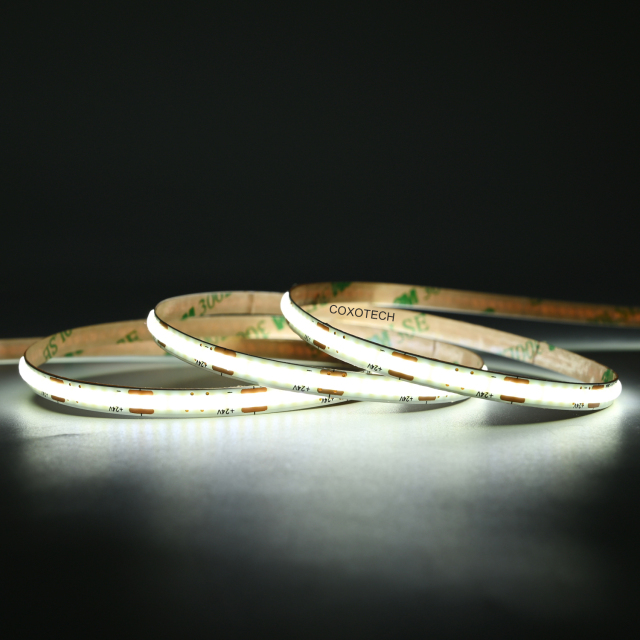

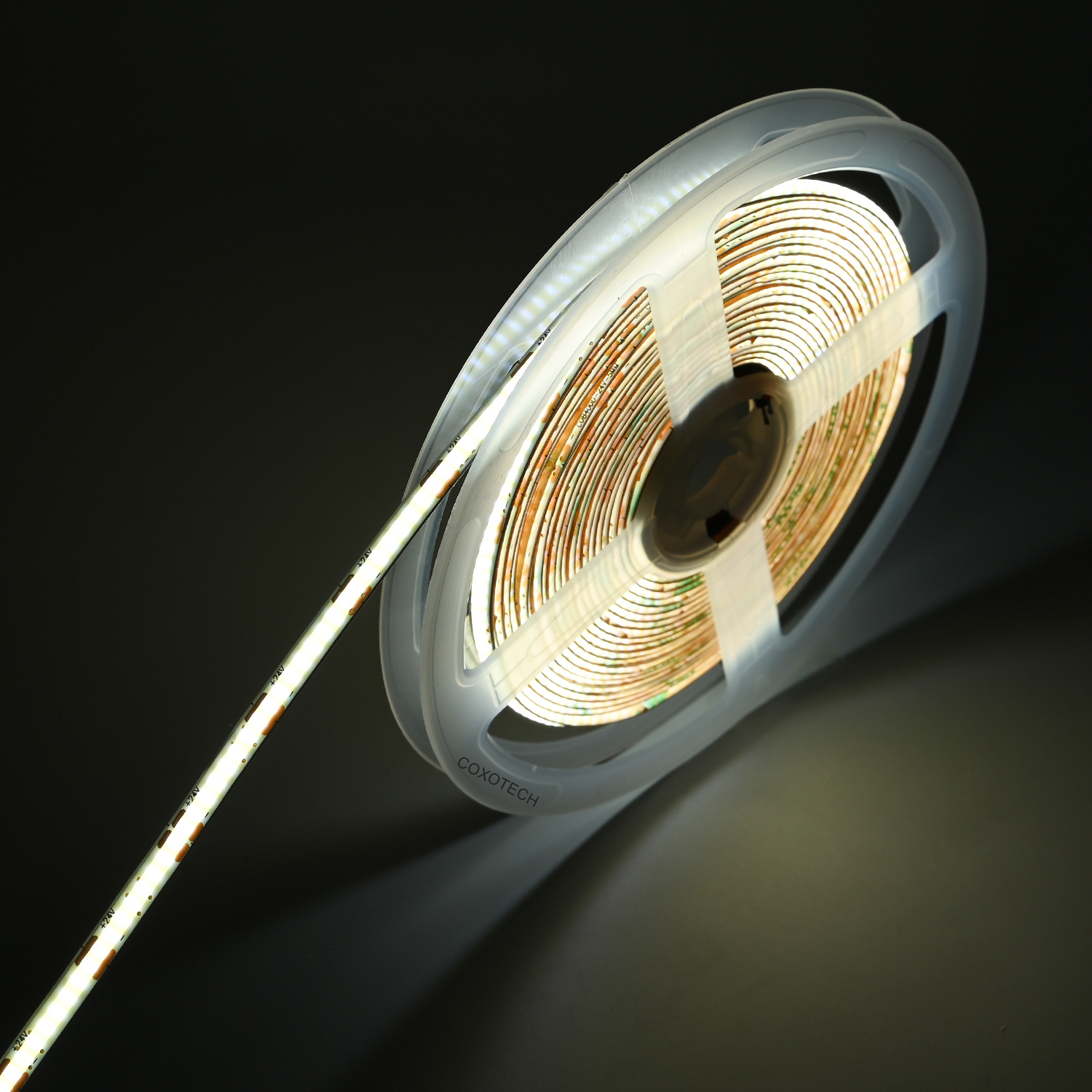

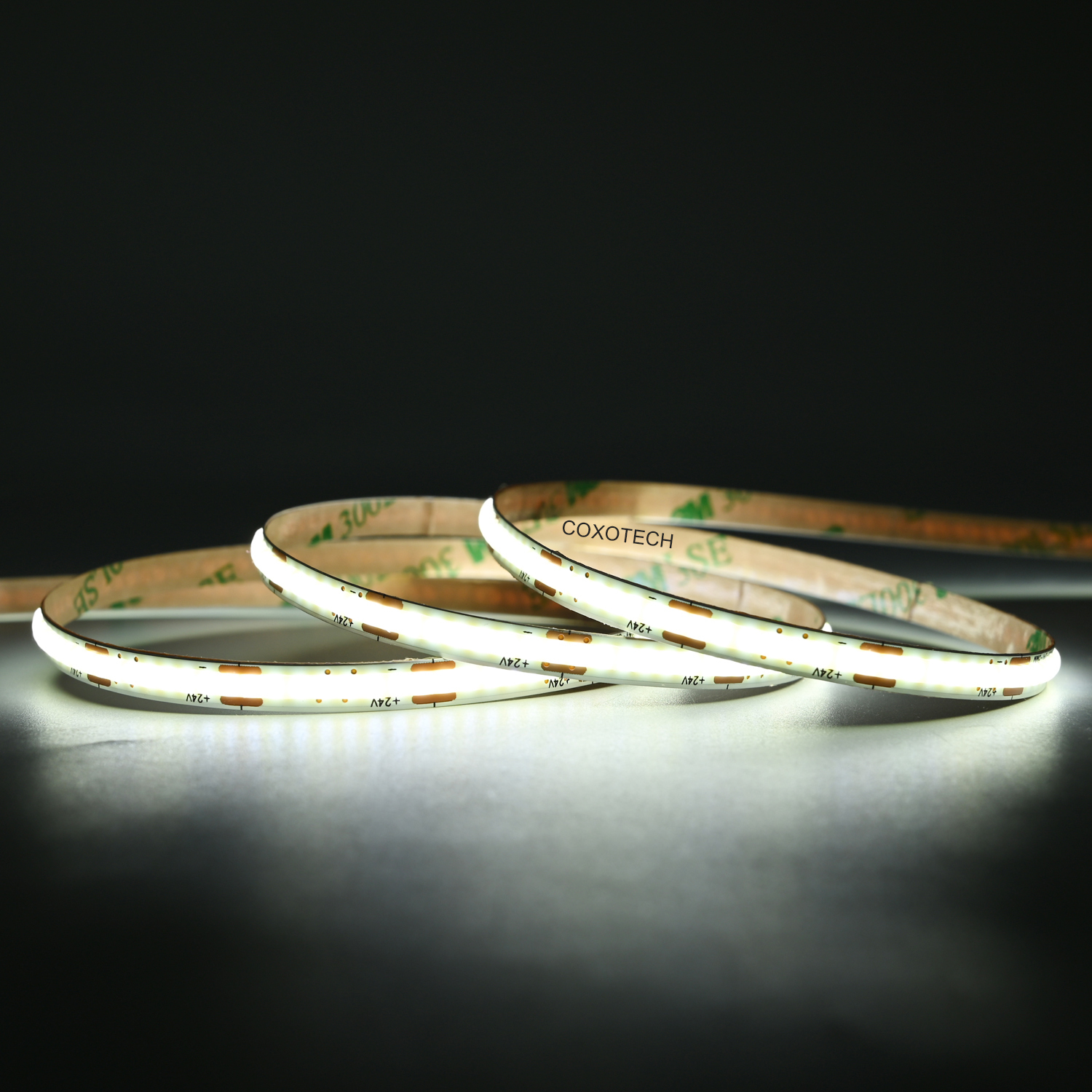

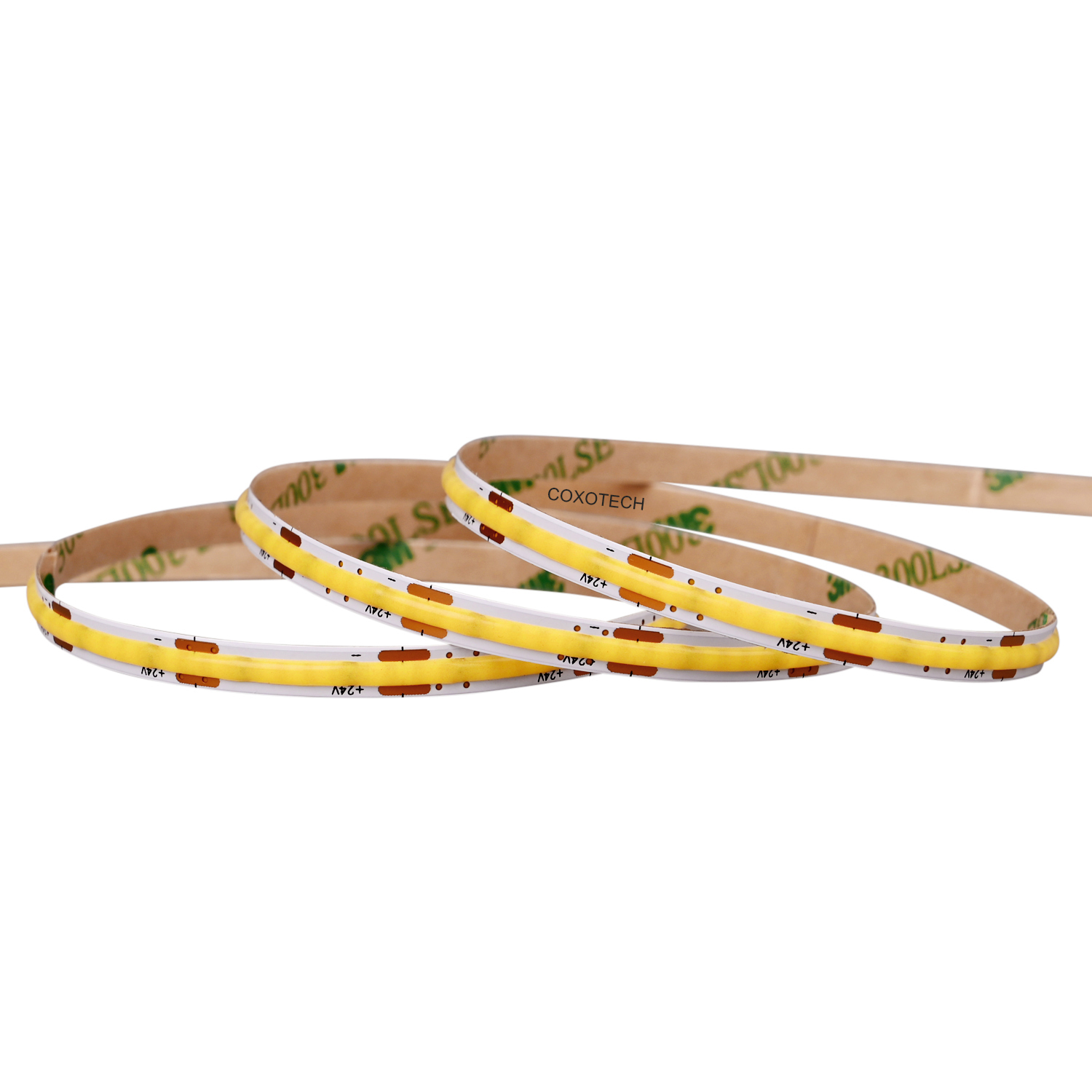

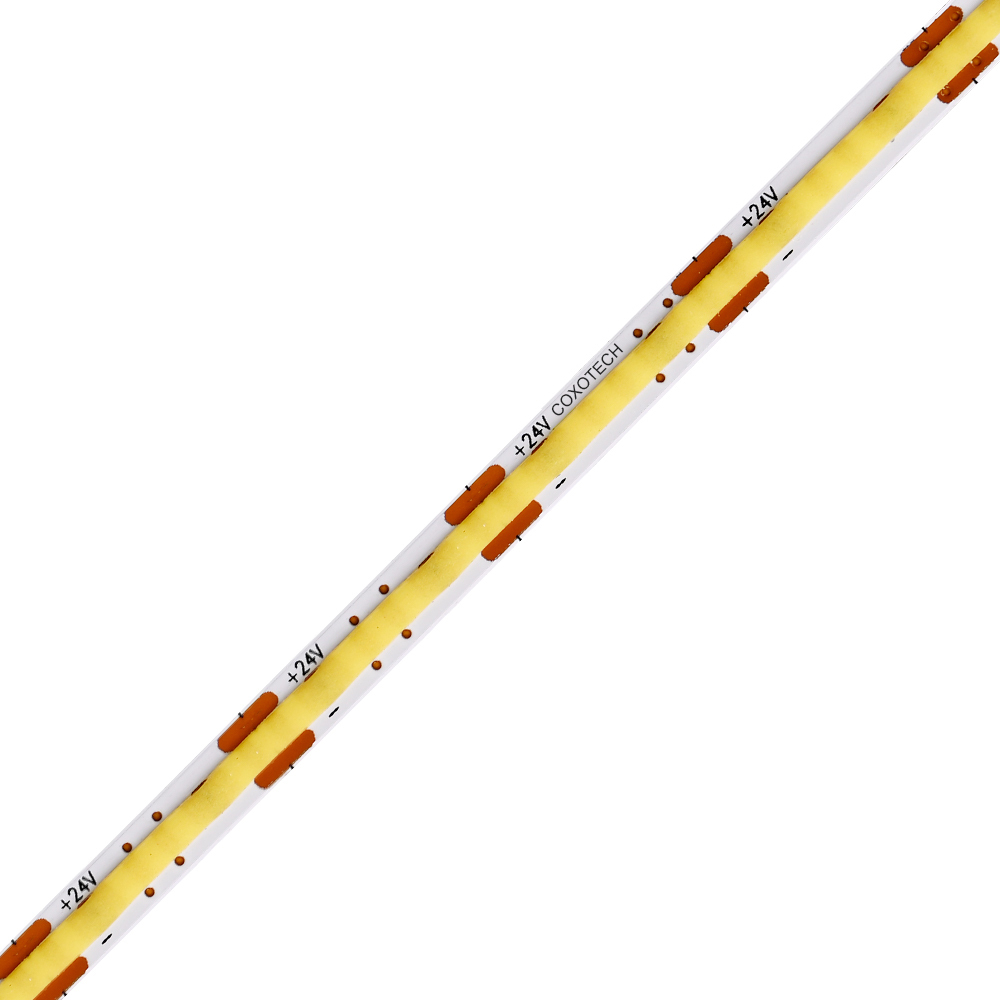

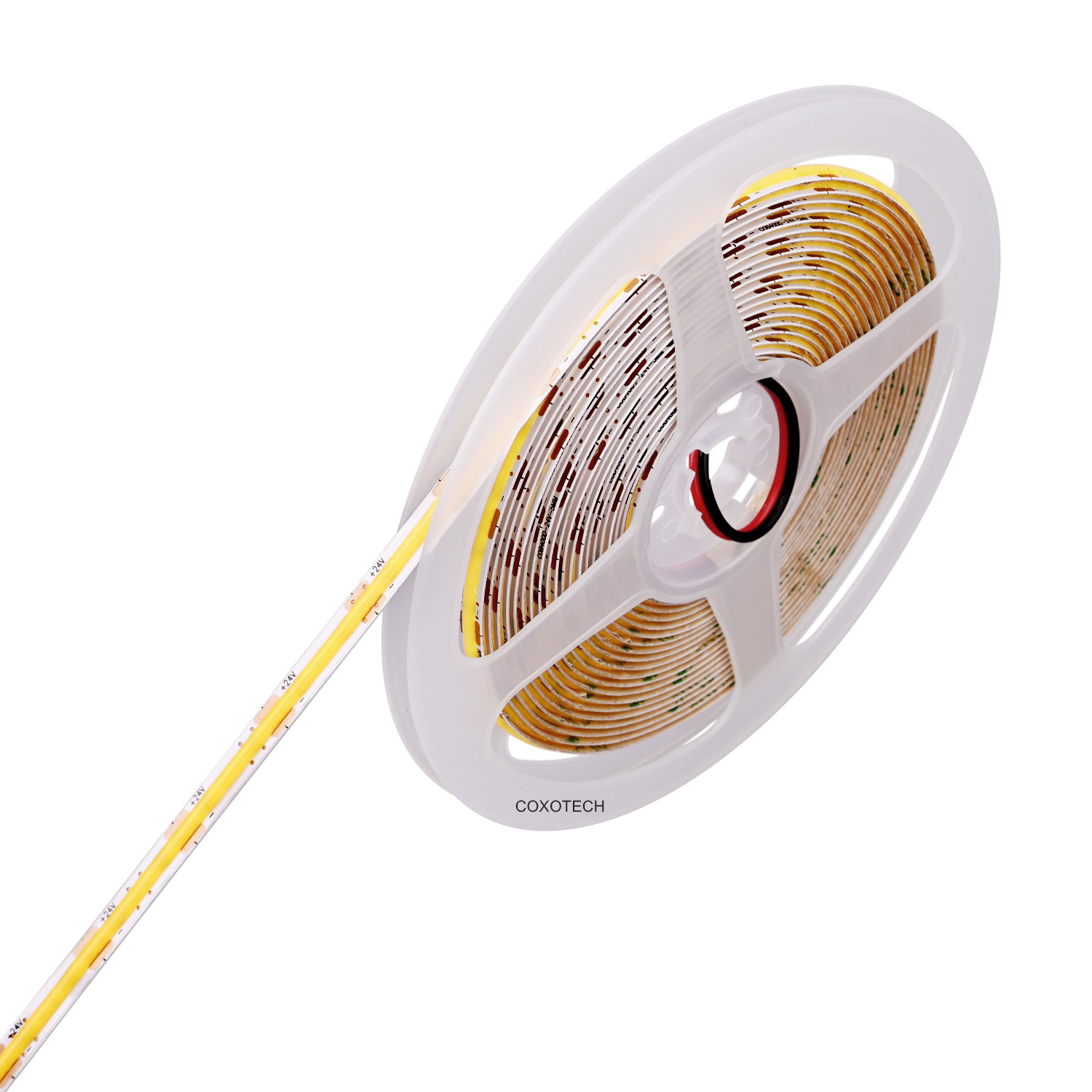

Mini 5mm COB 400leds/m

No.A5000-400-XXK-V12/24-R90-NWP-W6-P5-A2

1. New technology, high density, dot-free, Ra>90. Energy-saving and environment-friendly. 2. 2 OZ FPC, original high quality 3M 9495LE tape(320 chips not included), with special design strong package. LED with LM-80 Test approval.

Get A Quote

SPECIFICATION

Typical Specification

LED Type	COB
LED Quantity (leds/m)	400leds/m
Typical Color Temperature	3000K/4000K/6500K
Work Voltage	12V/24V
Power	6w/m
Ra	90+
Cutting Unit	10mm(12V) 20mm(24V)
PCB Width	5mm
IP Rating Opthional	IP20
Adhesive Tape	3M 9495LE 300MP

Product List

Model No.	Specification
	LED Type	LED Qty (pcs/m)	Color Temperature	Work Voltage	Power	Brightness	Ra	Cutting Unit	PCB Size
A5000-400-65K-V12-R90-NWP-W6-P5-A2	COB	400	6500±300K	12V DC	6W/M	600Lm/m	>90	10mm	5000*5mm 2 oz
A5000-400-40K-V12-R90-NWP-W6-P5-A2			4000±200K			560Lm/m
A5000-400-30K-V12-R90-NWP-W6-P5-A2			3000K±150K			520Lm/m
A5000-400-65K-V24-R90-NWP-W6-P5-A2	COB	400	6500±300K	24V DC	6W/M	600Lm/m	>90	20mm	5000*5mm 2 oz
A5000-400-40K-V24-R90-NWP-W6-P5-A2			4000±200K			560Lm/m
A5000-400-30K-V24-R90-NWP-W6-P5-A2			3000K±150K			520Lm/m

Packing Informaiton

Package 1: 500m per carton	Package 2:1000m per carton
Inner box: 25rolls 125m 34x20x22 cm / 2.3kg Outer Box :4 inner boxes 500m 42x35x46cm / 9.6kg	Inner box: 50rolls250m 34x20x24 cm / 3.7kg Outer Box :4 inner boxes1000m 43x36x51cm / 16kg
