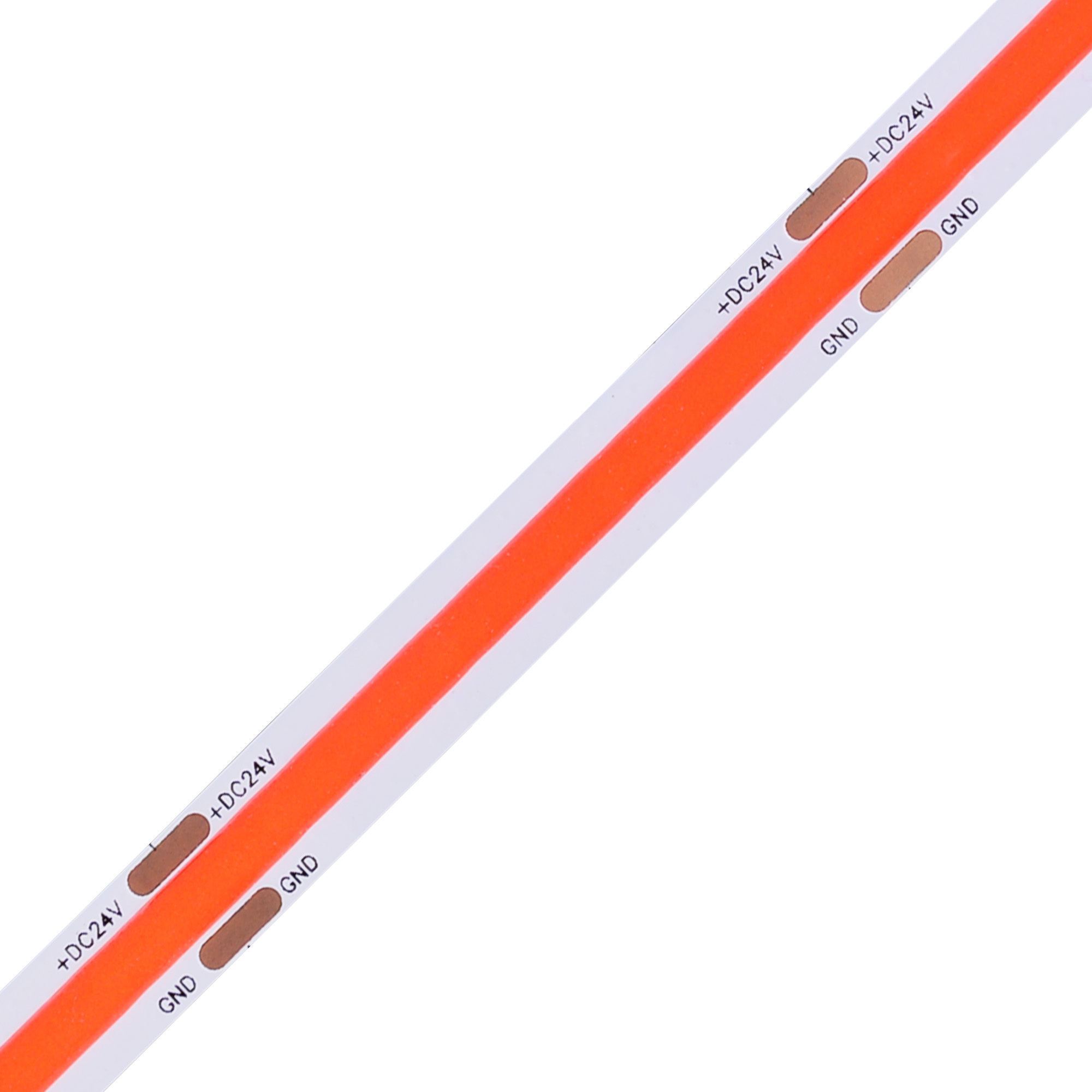

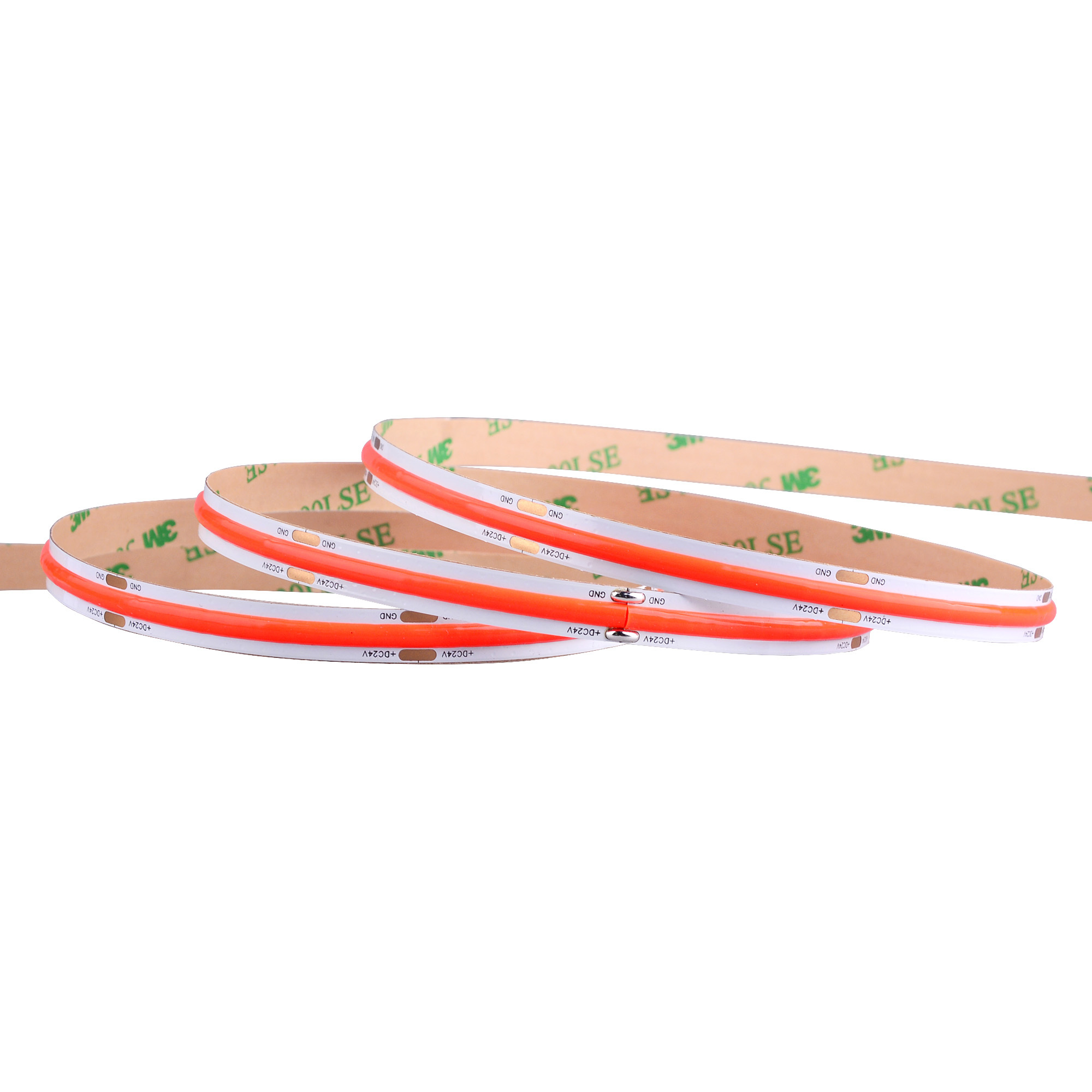

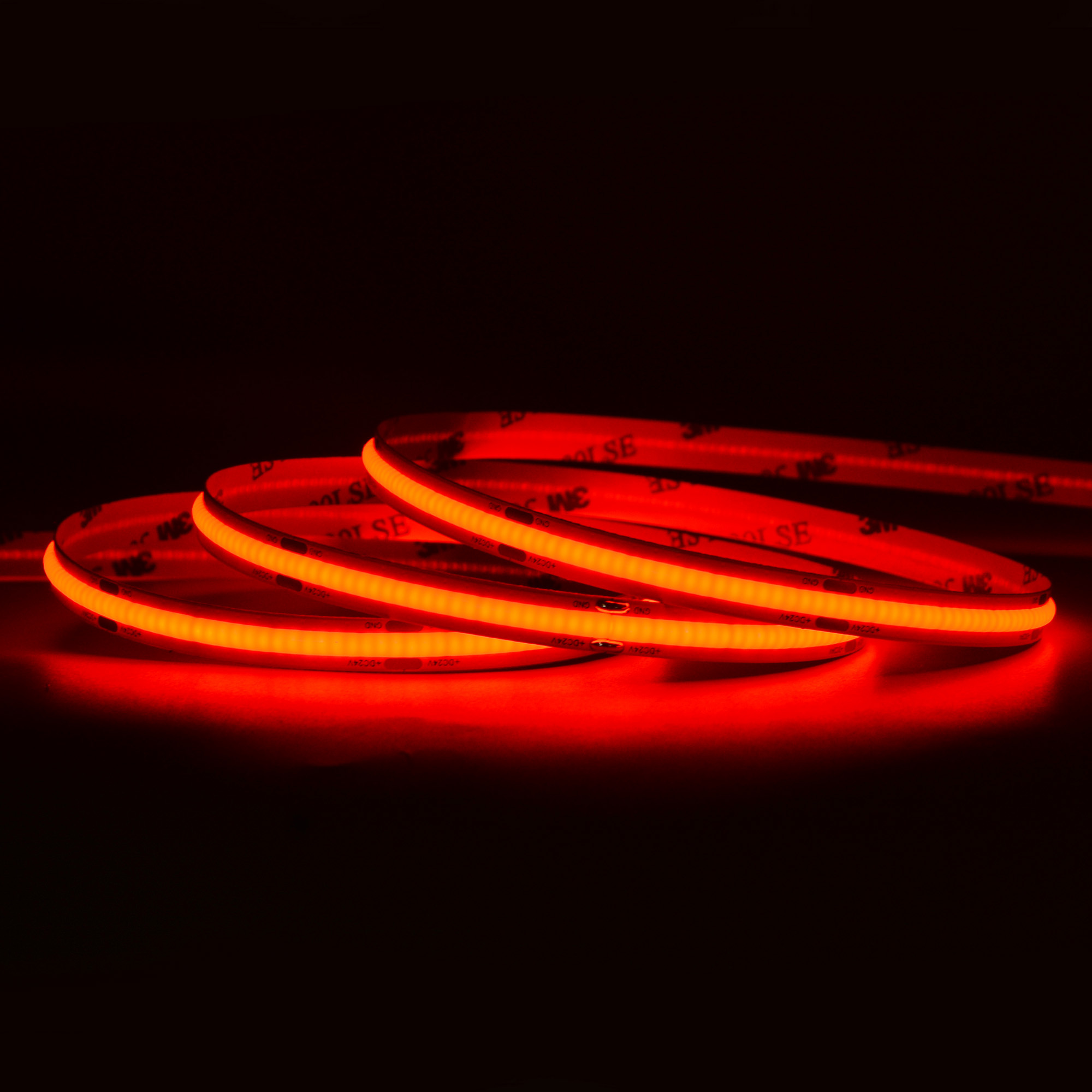

Red 480leds/m cob strip

No.A5000-480-R-V24-NWP-P8-2

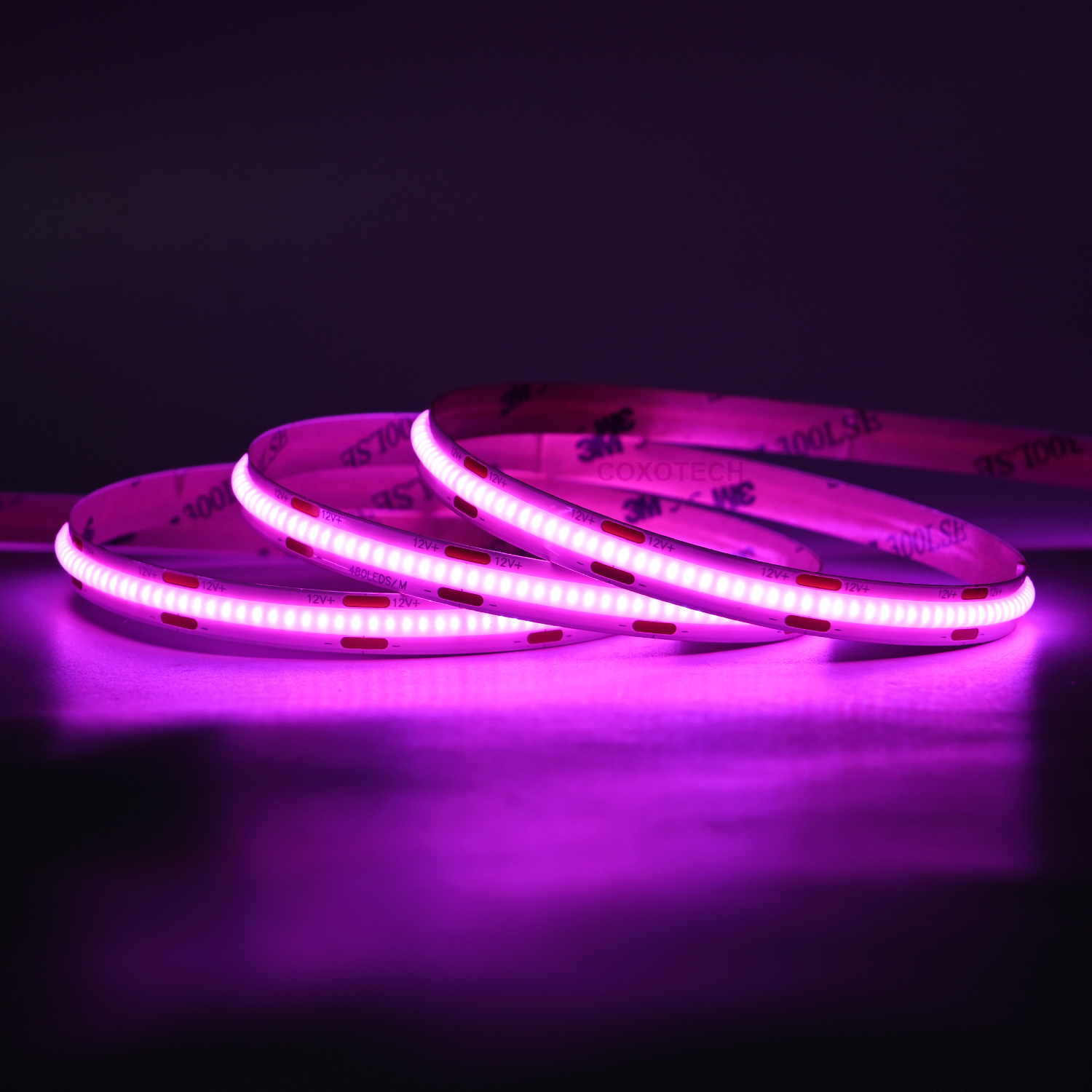

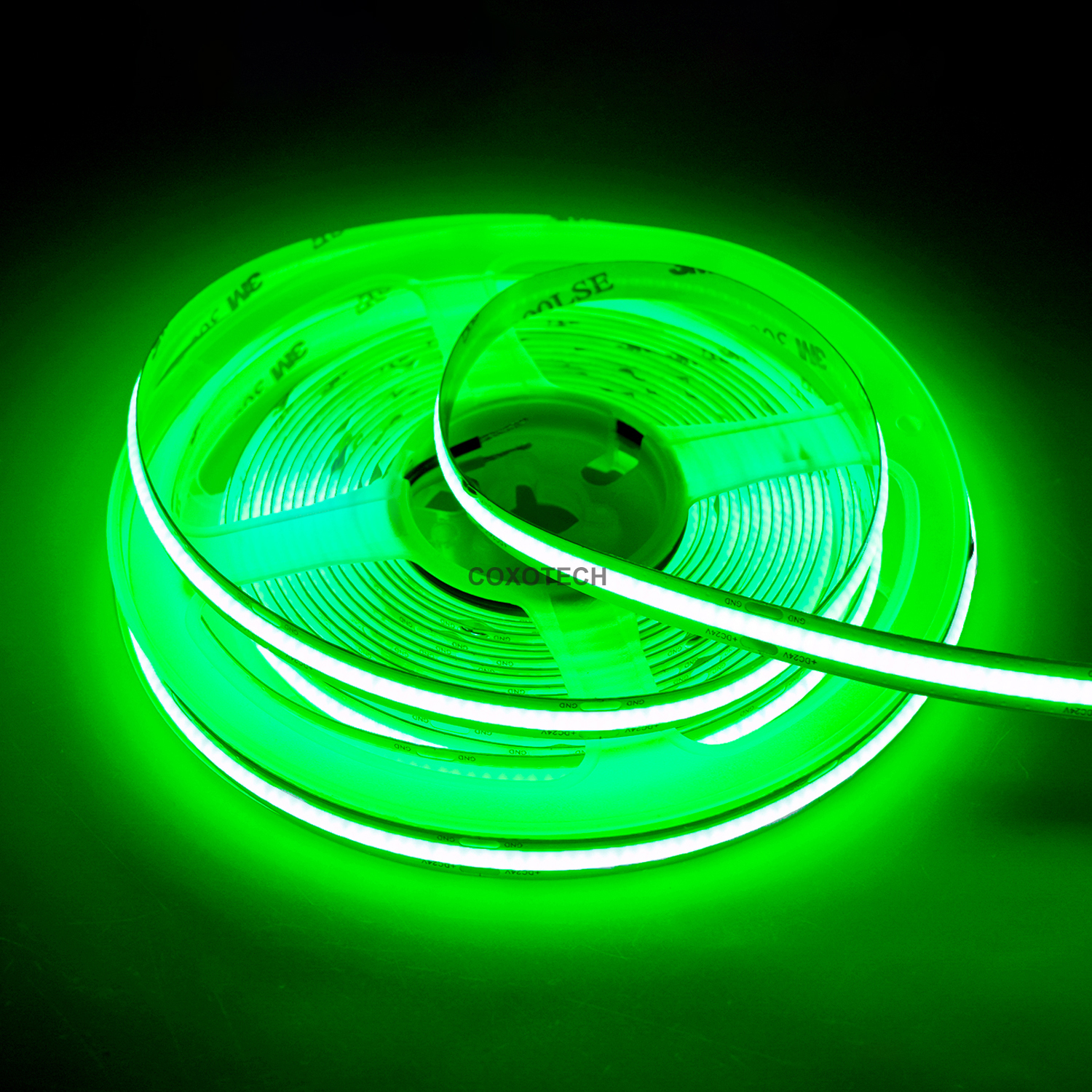

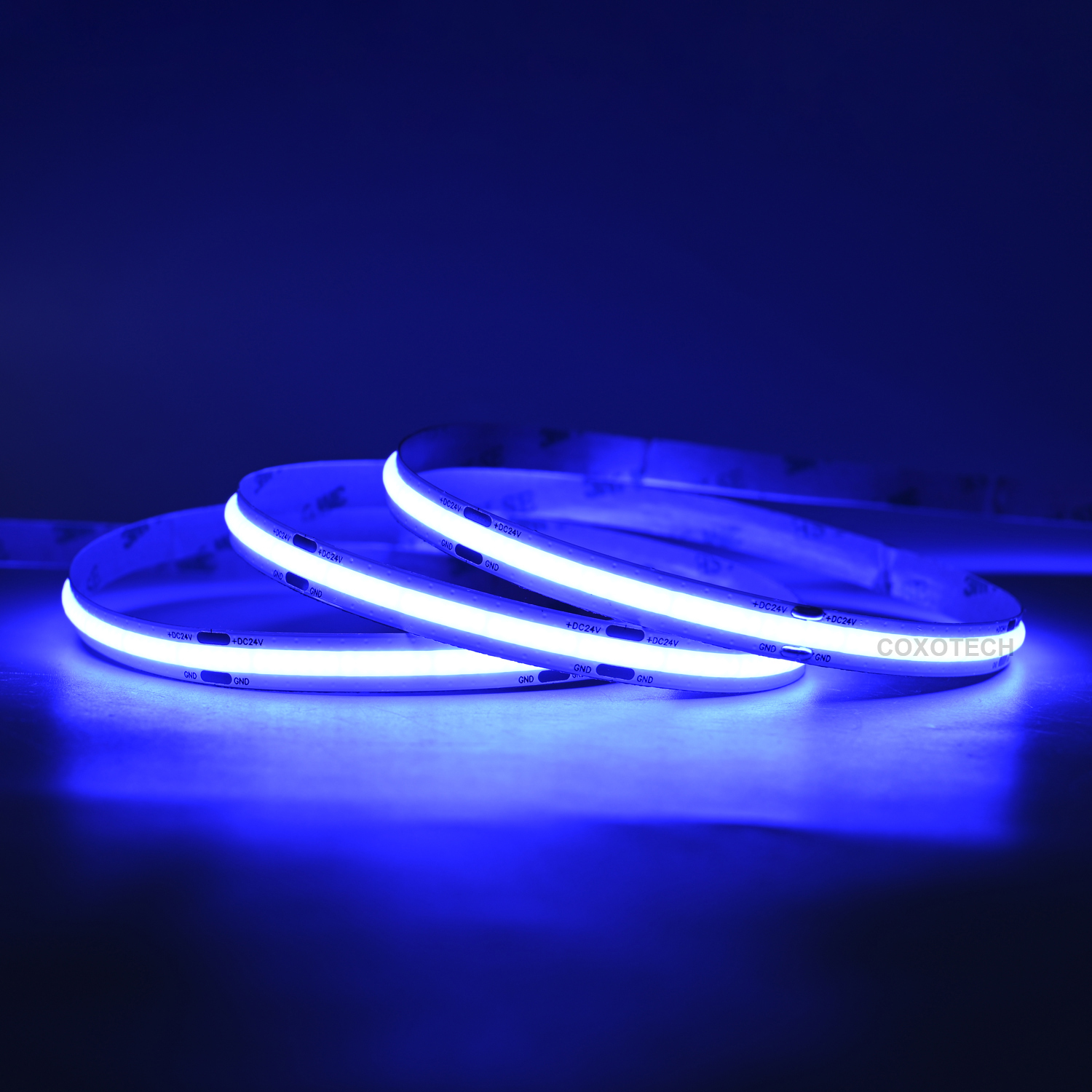

COB colorful led strip, Red, Green , Blue, Pink, Yellow, Orange, ICE Blue, Violet available
  • Red 480leds/m cob strip
  • Red 480leds/m cob strip
  • Red 480leds/m cob strip
SPECIFICATION
  • Typical Specification
LED Type COB
LED Quantity (leds/m) 480leds/m
Typical Color Temperature Red
Work Voltage 12V/24V
Power 10w/m
Ra NA
Cutting  Unit 25mm(12V)
50mm(24V)
PCB Width 8mm
IP Rating Opthional IP20/IP54/IP65/IP67/IP68
Adhesive Tape 3M 9495LE 300MP


  • Product List
    Model No. Specification
    LED Type LED Qty
    (pcs/m)
    Color Temperature Work Voltage Power Wavelength Cutting
    Unit
    PCB Size
    A5000-480-R-V12-NWP-P8-2 COB 480 Red 12V DC 10W/M 620-625nm 25mm(12V) 5000*8mm
    2 oz
    A5000-480-R-V12-NWP-P8-2 COB 480 Red 24V DC 10W/M 620-625nm 50mm(24V) 5000*8mm
    2 oz

  • Packing Informaiton
Package 1: 500m per carton Package 2:1000m per carton
Inner box:  25rolls 125m
34x20x22 cm / 2.6kg
Outer Box  :4 inner boxes 500m
42x35x46cm / 11.5kg
Inner box:  50rolls250m
34x20x24 cm / 4.1kg
Outer Box  :4 inner boxes 1000m
43x36x51cm / 18kg
